1M Cable Length Industrial RS485 Modbus 4-20mA Duct Mount Air Velocity Transmitter Sensor

Name: 1M Cable Length Industrial RS485 Modbus 420mA Duct Mount Air Velocity Transmitter Sensor
Brand: IVANPER
Price: 95.00 USD

Quality 1M Cable Length Industrial RS485 Modbus 4-20mA Duct Mount Air Velocity Transmitter Sensor wholesale

Warranty : 12 months

Type : Industrial

Customized support : OEM, ODM

Place of Origin : China

Brand Name : IVANPER

Model Number : AF410C

Product name : Speed Meter Velocimetry

Power supply : 12-24VDC

Measure range : 0-70m/s

Output : 0-10V 4-20mA RS485

Probe length : 200mm

Probe diameter : 14mm

Cable length : 1M

Packaging Details : Carton

Port : Tianjin

Supply Ability : 5000 Piece/Pieces per Month

MOQ : 10 units

Price : $95.00/units 10-99 units

Contact Now

INSTRUCTION

AF410C2 mini air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocity and temperature. A high-quality hot film sensor element based on cutting- edge thin film technology ensures maximum sensitivity, even at lowest mass flows.At the same time, the innovative probe design produces reliable measuring results at high flow velocities of up to 30m/s . The integrated temperature compensation minimise the temperature cross-sensitivity of AF410C2 which combined with the robust mechanical design.In addition to air velocity and temperature values, The cross section of the duct needs to be determined for this purpose and the volume flow rate can be and directed to one of the analogue output. AF410C2 can be used to the narrow space and measure very low velocity .For HVAC, Ventilation, Air-condition, Purification, Lab, Purification Workshop...

Specifications
Power Supply	12V DC/AC 24V DC/AC 5VDC/AC {Customization}
Measure Range	0-5m/s 0-10m/s 0-15m/s 0-20m/s 0-30m/s
Output	0-5V 0-10V 0-20mA 4-20mA Rs485{modbus-RTU}
Measure Accuracy	±{0.2m/s +3%of MV}
Consumption	2.5W
Protection Rating	IP65
Response Latency	0.2 s
Resolution	0.01m/s
Sensing Elements	Thermal film sensor
Working Environment	Temperature: -20-85ºC Humidity:5%-95%
Probe Length	Installation of flange :150mm / Customization
Material of Probe	ABS Engineering plastic

1M Cable Length Industrial RS485 Modbus 4-20mA Duct Mount Air Velocity Transmitter Sensor

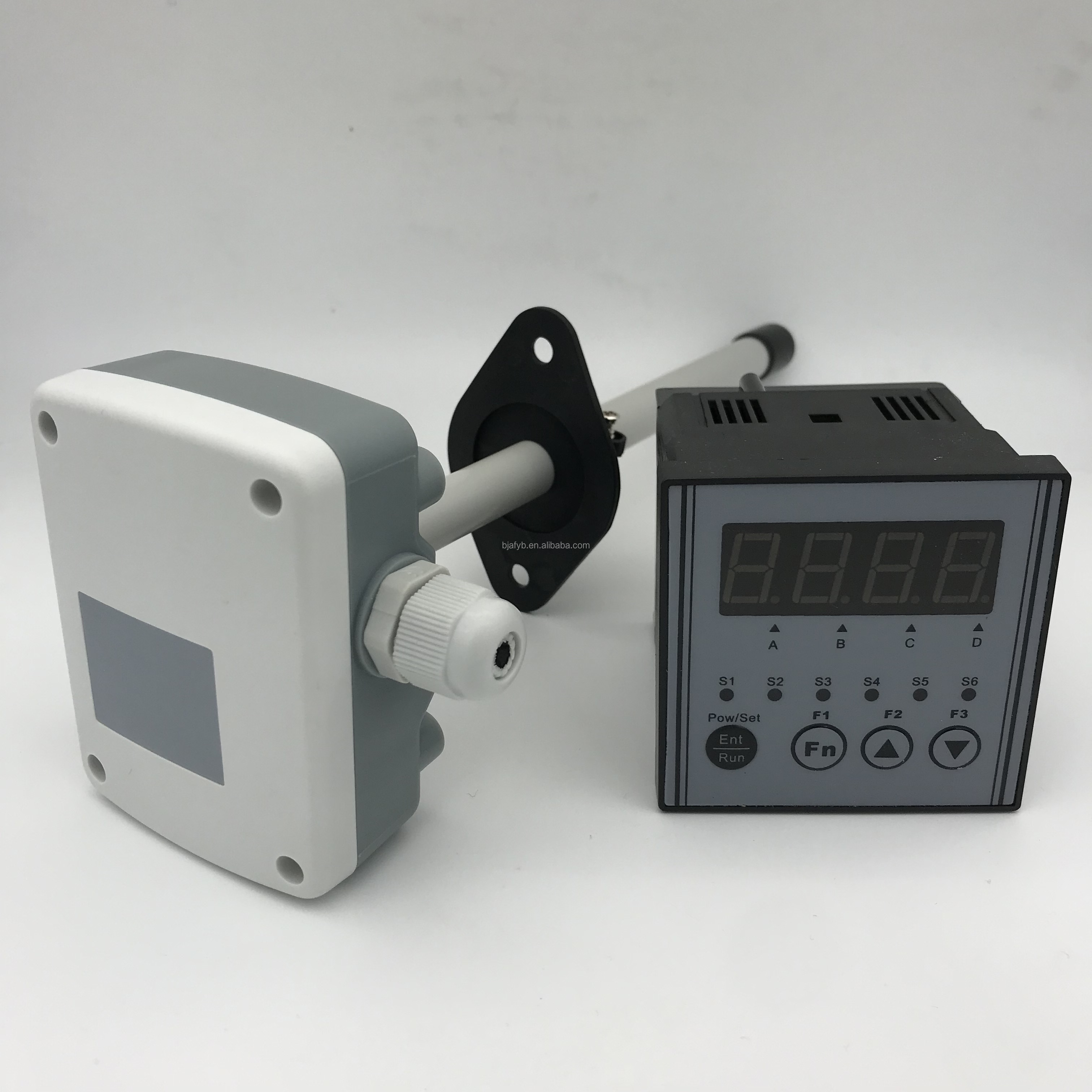

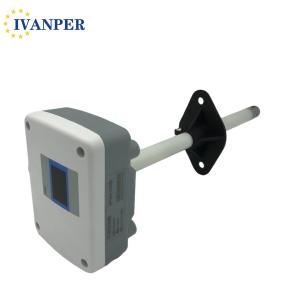

1M Cable Length Industrial RS485 Modbus 4-20mA Duct Mount Air Velocity Transmitter Sensor Images
